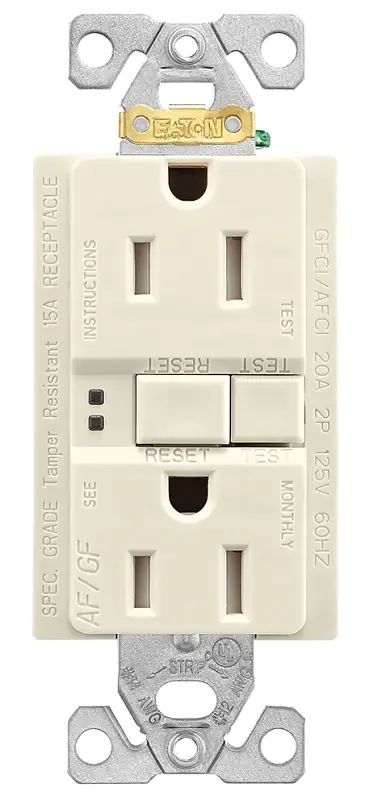

Eaton Wiring Devices TRAFGF15LA-K-L Duplex Receptacle Wallplate, 2-Pole, 15 A, 125 V, Back, Side Wiring, NEMA: 5-15R Buy Online

Features

• Protects from both series and parallel arcs downstream from the outlet Branch Circuit (OBC) AF/GF receptacle
• OBC AF/GF receptacles also protect from upstream series arcs
• Trip indicators make it easy-to diagnose arc and ground faults
• Device self-tests periodically to ensure proper function of both the ground fault and arc fault protection elements
• Meets and exceeds 10 kA short-circuit testing and underwriters laboratories (UL) UL943 safety standards
• Ground termination with back wire clamp provides secure wiring and reduces installation time
• Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure and provides redundant measure of ground continuity where jumper is used
• Tapered back wire openings handle multiple wire sizes and types for applications up to #10 AWG solid or standard wire
• When downstream receptacles are wired from load side, a 20 A feed-through rating offers full protection
• Lock out functionality prevents miswired line load connections and GFCI/AFCI circuitry damage

Eaton Wiring Devices Duplex Receptacle Wallplate, 125 V, 15 A, Frequency Rating: 60 Hz, Number of Poles: 2, Number of Wires: 3, Wiring Type: Back, Side, Wire Size: 14 to 10 AWG, NEMA Configuration: 5-15R, Operating Temperature: 30 deg C, PVC/Thermoplastic, Light Almond, Dimensions: 2.81 in L x 2.01 in W x 4.62 in H, Includes: Thermoplastic Wallplate
Unit: CD
UPC: 032664022630
Model Number: TRAG15LA
